4Gang US Horizontal Version Smart Wall Switch
4Gang US Horizontal Version Smart Wall Switch
Andeli GroupCo.,Ltd. is one of the toppest US Samrt Switch in China.During these years of exporting , Andeli GroupCo.,Ltd. now has rich experience in the worldwide markets
NOTE:

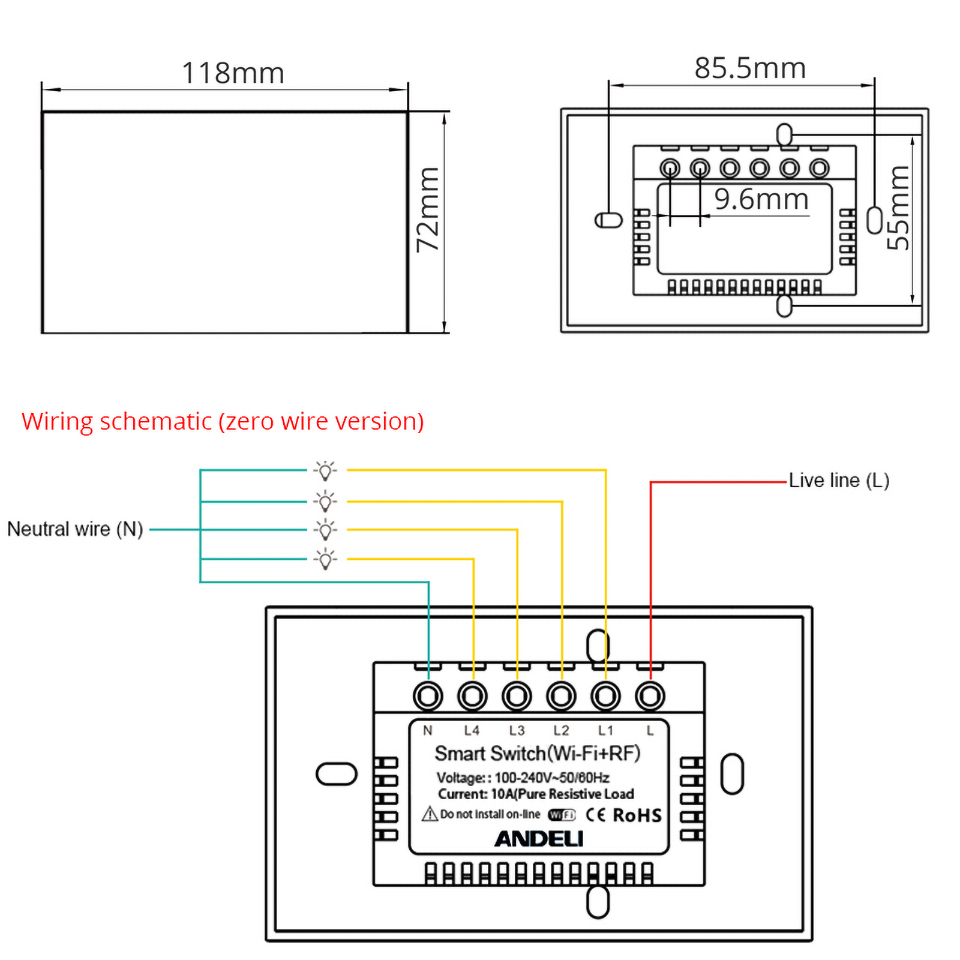

EU is square(86mm*86mm)
US is rectangular (118mm*72mm)
New Version
Update1:New pairing mode with WiFi+Bluetooth
1.with wifi+bluetooth connected for automatic identification and easy configuration
2.no more need to do so many complicated steps for pairing
3.quick and easy connection within 8 seconds
Update2:Backlight ON/OFF optional
1.Backlight switch with ON/OFF Optional NO influences on sleep
2.New NO/OFF Relay Status in APP More personalized settings as ON/OFF/Remember last status when power off
Specification
Brand: ANDELI
Item No.: ADS02
Color: White/Black/gray/Gold
Material: PC+ Toughened Glass Panel
Voltage: 100-250V 50/60Hz
Current: need neutral line 10A/
no need neutral line 3A
Rated Load: need neutral line 0-1000W/
no need neutral line 0-300W
Power Consumption: ≤0.5W
Working Temperature: 0℃~40℃
RF: 433MHz
RF Standard Code: 1527，2262
WIFI Standard: IEEE 802.11bgn 2.4Ghz
Support System: Above iOS 8.0 or Android 4.3
Network Security: WPA/WPA2
Control Mode: APP/RF/Manual
Certification: CE, RoHS
APP: Tuya Smart/Smart Life
RELIABLE AFTER-SALES SERVICE
Our friendly and reliable after-sales service team can provide the most professional solutions for any of your problems. Please rest assured for shopping.All orders will be shipped out within 3 working days, except order placed in Chinese holidays.
Package Content
1*Smart Wifi Switch
2*Screws
EU is square(86mm*86mm)
US is rectangular (118mm*72mm)
New Version
Update1:New pairing mode with WiFi+Bluetooth
1.with wifi+bluetooth connected for automatic identification and easy configuration
2.no more need to do so many complicated steps for pairing
3.quick and easy connection within 8 seconds
Update2:Backlight ON/OFF optional
1.Backlight switch with ON/OFF Optional NO influences on sleep
2.New NO/OFF Relay Status in APP More personalized settings as ON/OFF/Remember last status when power off
Specification
Brand: ANDELI
Item No.: ADS02
Color: White/Black/gray/Gold
Material: PC+ Toughened Glass Panel
Voltage: 100-250V 50/60Hz
Current: need neutral line 10A/
no need neutral line 3A
Rated Load: need neutral line 0-1000W/
no need neutral line 0-300W
Power Consumption: ≤0.5W
Working Temperature: 0℃~40℃
RF: 433MHz
RF Standard Code: 1527，2262
WIFI Standard: IEEE 802.11bgn 2.4Ghz
Support System: Above iOS 8.0 or Android 4.3
Network Security: WPA/WPA2
Control Mode: APP/RF/Manual
Certification: CE, RoHS
APP: Tuya Smart/Smart Life
RELIABLE AFTER-SALES SERVICE
Our friendly and reliable after-sales service team can provide the most professional solutions for any of your problems. Please rest assured for shopping.All orders will be shipped out within 3 working days, except order placed in Chinese holidays.
Package Content
1*Smart Wifi Switch
2*Screws
App Remote Control
As long as your smart phone or tablet has 4G or WIFI network, you can control your lights by the
App “Tuya smart or Smart Life”.
As long as your smart phone or tablet has 4G or WIFI network, you can control your lights by the
App “Tuya smart or Smart Life”.
RF 433MHz Remote Control
The smart wifi switch can pair with 433MHZ 1527 and 2262 RF transmitter. Even if there is no wifi signal
at home, the device still can be controlled by RF transmitter.
The smart wifi switch can pair with 433MHZ 1527 and 2262 RF transmitter. Even if there is no wifi signal
at home, the device still can be controlled by RF transmitter.
Voice control
Perfectly Compatible with Alexa and Work with Google Home. Turn on / off lights by voice command when your hands are occuppied
Perfectly Compatible with Alexa and Work with Google Home. Turn on / off lights by voice command when your hands are occuppied
Timer Setting
Setting a schedule or timer on/off your lights at night and morning, your lights will not only wait for you when you return back home at night, but also wake you up quitely every morning.
Setting a schedule or timer on/off your lights at night and morning, your lights will not only wait for you when you return back home at night, but also wake you up quitely every morning.
Share Function
Sharing devices with your family members to eliminate extra steps for connection.
Sharing devices with your family members to eliminate extra steps for connection.
Smart Scene
Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode,
temperature, humidity, or other environmental conditions.
Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode,
temperature, humidity, or other environmental conditions.
Safety and Certification
The wall switch adopts premium materials, such as fire-resistant shell, phosphor copper connectors and advanced PC+TEMPERED GLASS, can provide fire prevention, overload protection to protect your family.All of our products are certificated by CE, and RoHS. Without using any harmful chemical substances, please feel relax to use.
The wall switch adopts premium materials, such as fire-resistant shell, phosphor copper connectors and advanced PC+TEMPERED GLASS, can provide fire prevention, overload protection to protect your family.All of our products are certificated by CE, and RoHS. Without using any harmful chemical substances, please feel relax to use.
